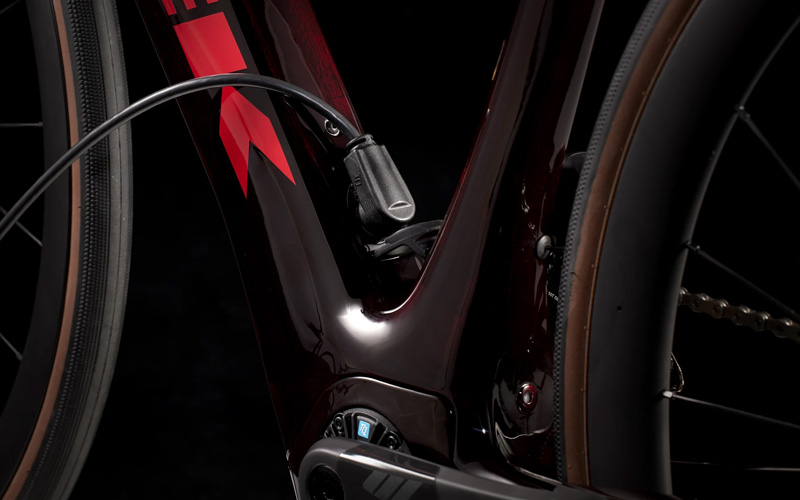

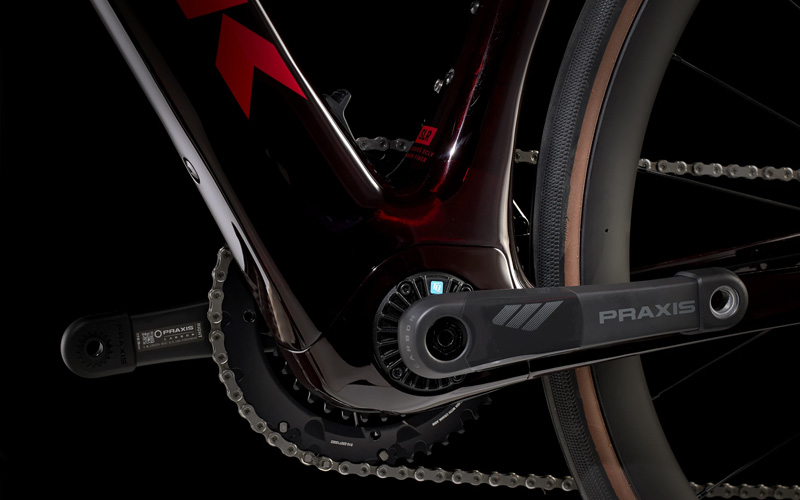

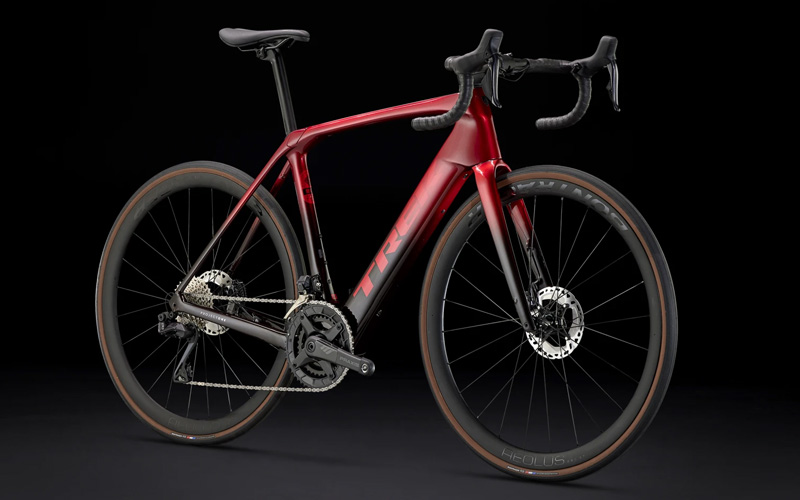

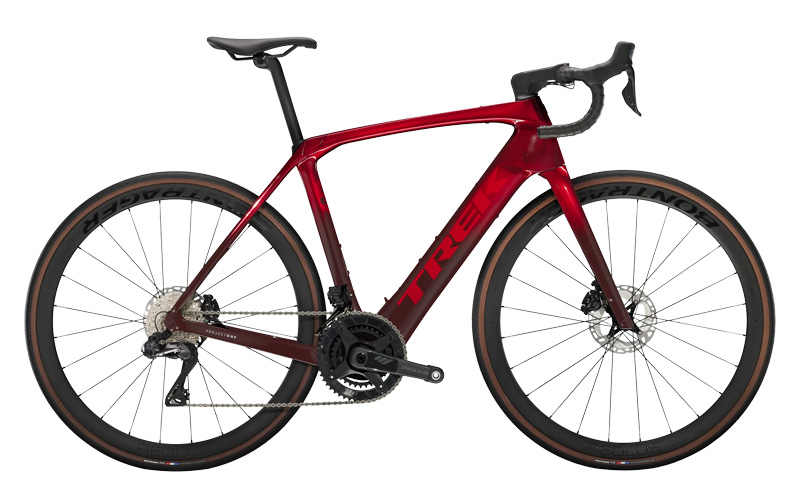

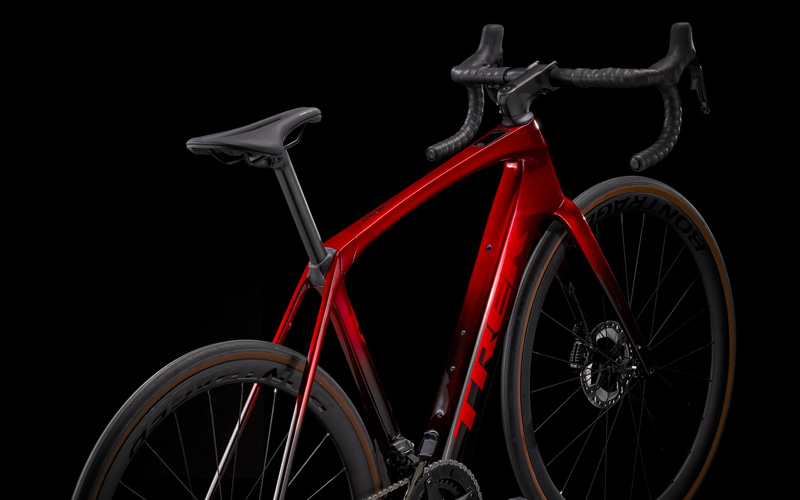

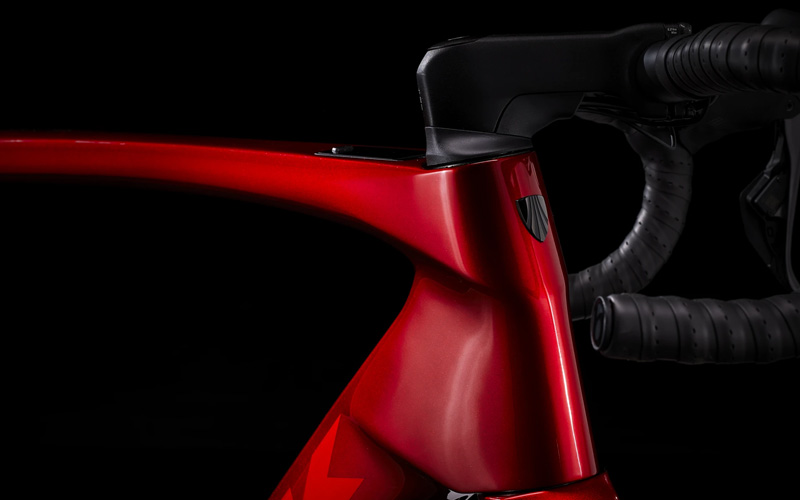

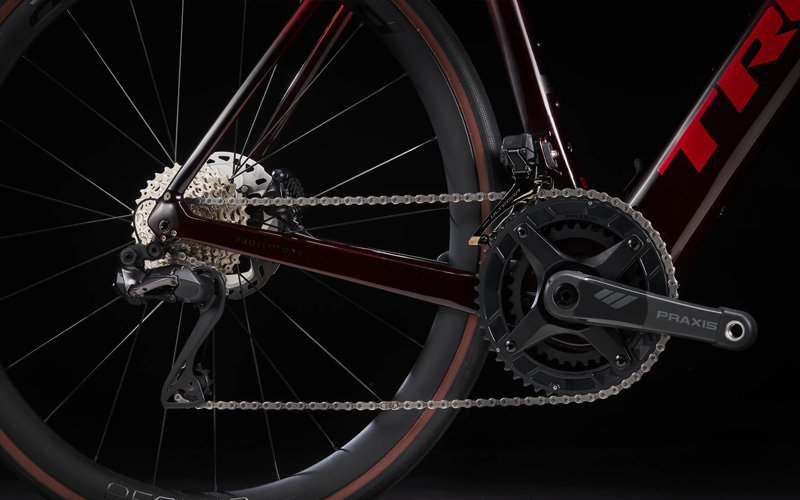

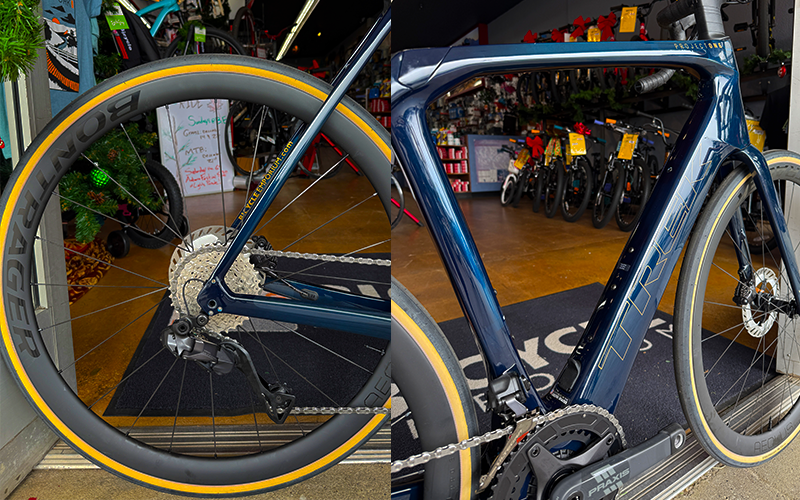

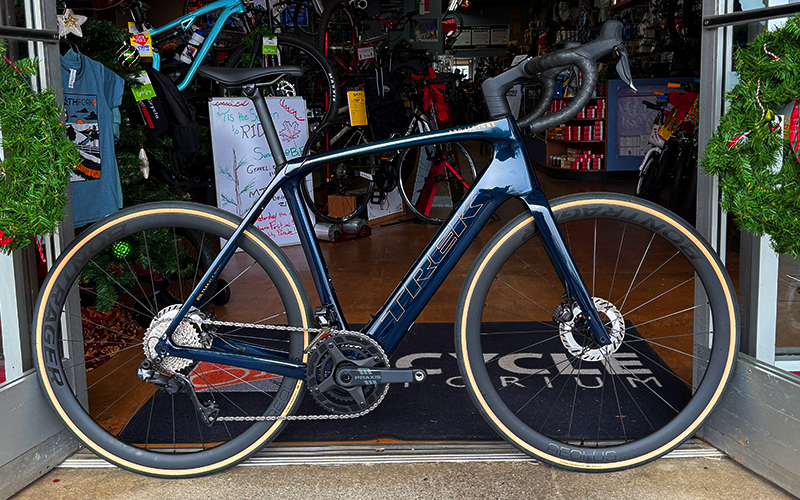

Domane+ SLR 7 is a category-redefining carbon e-road bike built with intensely light 800 Series OCLV Carbon. It hides a compact and refined motor to elevate your ride with natural-feeling assist that quietly blends in with the elements, all but disappearing under you, so you stay more connected to the experience while enjoying extra power for crushing climbs and long, epic adventures. Plus, it offers the ultra-fast shifting of a Shimano Ultegra Di2 drivetrain. You must test ride this bike to really understand how great of a ride it truly is. Shown here in the sexy red colorway. You can see all the colors on TREK’s website and also custom paint with Project One.
| Frame size number | Wheel size | A — Seat tube |
B — Seat tube angle |
C — Head tube length |
D — Head angle |
E — Effective top tube |
G — Bottom bracket drop |
H — Chainstay length |
I — Offset |
J — Trail |
K — Wheelbase |
L — Standover |
M — Frame reach |
N — Frame stack |
Stem length | Saddle rail height min (w/short mast) | Saddle rail height max (w/short mast) | Saddle rail height min (w/tall mast) | Saddle rail height max (w/tall mast) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 700c | 45.0 | 74.6° | 13.0 | 71.1° | 51.9 | 8.0 | 43.0 | 5.3 | 6.3 | 100.7 | 72.8 | 36.8 | 54.6 | 80.0 | 58.5 | 65.0 | 61.5 | 68.0 |
| 52 cm | 700c | 47.5 | 74.2° | 14.5 | 71.3° | 53.0 | 8.0 | 43.0 | 5.3 | 6.2 | 101.3 | 74.7 | 37.1 | 56.1 | 90.0 | 61.5 | 68.0 | 64.5 | 71.0 |
| 54 cm | 700c | 50.0 | 73.7° | 16.0 | 71.3° | 54.2 | 8.0 | 43.0 | 5.3 | 6.2 | 102.1 | 76.6 | 37.4 | 57.5 | 90.0 | 64.0 | 70.5 | 67.0 | 73.5 |
| 56 cm | 700c | 52.5 | 73.3° | 17.5 | 71.9° | 55.4 | 7.8 | 43.0 | 4.8 | 6.3 | 101.8 | 78.8 | 37.7 | 59.1 | 100.0 | 67.0 | 73.5 | 70.0 | 76.5 |
| 58 cm | 700c | 54.8 | 73.0° | 19.5 | 72.0° | 56.7 | 7.8 | 43.0 | 4.8 | 6.3 | 102.7 | 80.8 | 38.0 | 61.1 | 100.0 | 69.0 | 75.5 | 72.0 | 78.5 |
| 60 cm | 700c | 56.7 | 72.8° | 22.0 | 72.1° | 57.9 | 7.5 | 43.0 | 4.8 | 6.2 | 103.7 | 82.9 | 38.3 | 63.2 | 110.0 | 71.0 | 77.5 | 74.0 | 80.5 |
| 62 cm | 700c | 58.6 | 72.5° | 24.5 | 72.1° | 59.3 | 7.5 | 43.0 | 4.8 | 6.2 | 104.7 | 84.7 | 38.6 | 65.6 | 110.0 | 73.0 | 79.5 | 76.0 | 82.5 |
