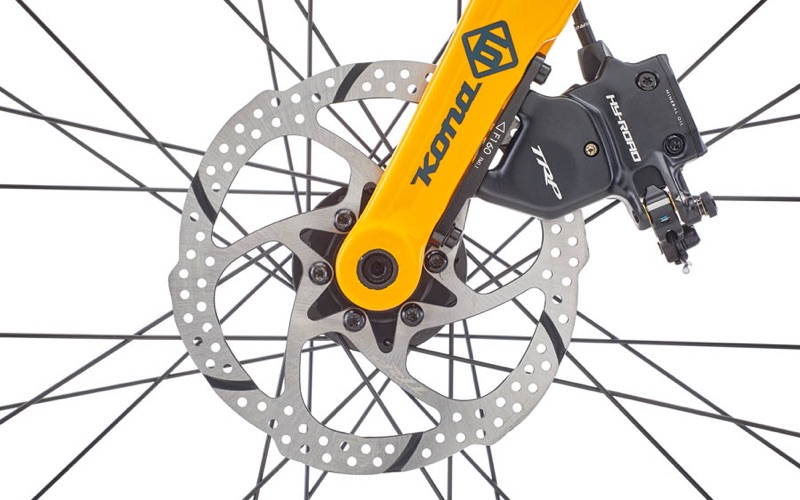

The working rider’s steed, the Jake the Snake is the go-to bike for Cyclocross racers and hard-core commuters alike. The legendary Jake the Snake features race-driven geometry in a tough yet light aluminum frame and a full carbon flat mount disc fork and is accompanied by tubeless-ready wheels. It’s not your typical sketchy cross bike. It’s got a slightly higher stack height so it’s practical as a commuter. It’s the perfect bike to take to your local CX race and the perfect bike to ride to work and rip the little bits of sneaky singletrack you find en route. It’s practical every day and ready to crush it on your crazy type-2 adventures!
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 516 | 531 | 546 | 562 | 578 | 596 |
| 3 | Reach | 375 | 380 | 385 | 390 | 395 | 400 |
| 4 | Stack | 525 | 545 | 560 | 580 | 600 | 620 |
| 5 | Standover | 747 | 764 | 787 | 802 | 822 | 840 |
| 6 | HT Angle | 70 | 70 | 70.5 | 70.5 | 71 | 71 |
| 7 | HT Length | 100.6 | 121.8 | 137.9 | 159.1 | 180.2 | 201.4 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 425 | 425 | 425 | 425 | 425 | 425 |
| 10 | BB Drop | 72 | 72 | 70 | 70 | 68 | 68 |
| 11 | BB Height | 280 | 280 | 282 | 282 | 284 | 284 |
| 12 | Wheelbase | 1007 | 1019 | 1026 | 1038 | 1045 | 1057 |
| 13 | Front Center | 592 | 604 | 610 | 622 | 630 | 641 |
| 14 | Fork Length | 395 | 395 | 395 | 395 | 395 | 395 |
| 15 | Fork Offset | 45 | 45 | 45 | 45 | 45 | 45 |
